IPC2241-FN/FNW-SIR
2.0MP Starlight & Ultra WDR HD Mini IR Semi Dome
Excellent Image Quality
- 2.0 Megapixel, 1/2.8’’ progressive scan CMOS sensor
- High definition and smooth picture,1080p@30fps
- H.265 video codec, saves up to 50% bandwidth
- Ultra-low illumination, 0.002lux with color picture
- 120dB Ultra WDR
- 3D noise reduction / Auto Iris / HLC
Intelligent Functions
- Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge.
Integrated High Efficiency IR
- Industrial IR LED with long operational lifespan
- 15m IR distance
- Smart IR function
Avariety of Installation Modes
- Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
- Micro SD card slot, supports Automatic Network Replenishment (ANR)
- Bi-directional audio / Built-in Mic / Alarm in and out / Video out / RS485
- Wi-Fi supported (-FNW only)
- Dual-stream (1080p + D1)
- Anti-fog glass
- EN50155
- PoE
- IP67, IK10+ Protection
IPC2241-FN/FNW-PIR
2.0MP Starlight & Ultra WDR HD Mini IR Semi Dome
Excellent Image Quality
- 2.0 Megapixel, 1/2.8’’ progressive scan CMOS sensor
- High definition and smooth picture, 1080p@30fps
- H.265 video codec, saves up to 50% bandwidth
- Low illumination, 0.002lux with color picture
- 120dB Ultra WDR
- 3D noise reduction / Auto Iris / HLC
Intelligent Functions
- Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Integrated High Efficiency IR
- Industrial IR LED with long operational lifespan
- 15m IR distance
- Smart IR function
A variety of Installation Modes
- Supports 90°, 180°, 270° image rotation
Abundant Functions and Features
- Micro SD card slot, supports Automatic Network Replenishment (ANR)
- Bi-directional audio / Built-in Mic
- Wi-Fi supported (-FNW only)
- Dual-stream (1080p + D1)
- Anti-fog glass
- EN50155
- PoE
- IP67, IK10+ Protection

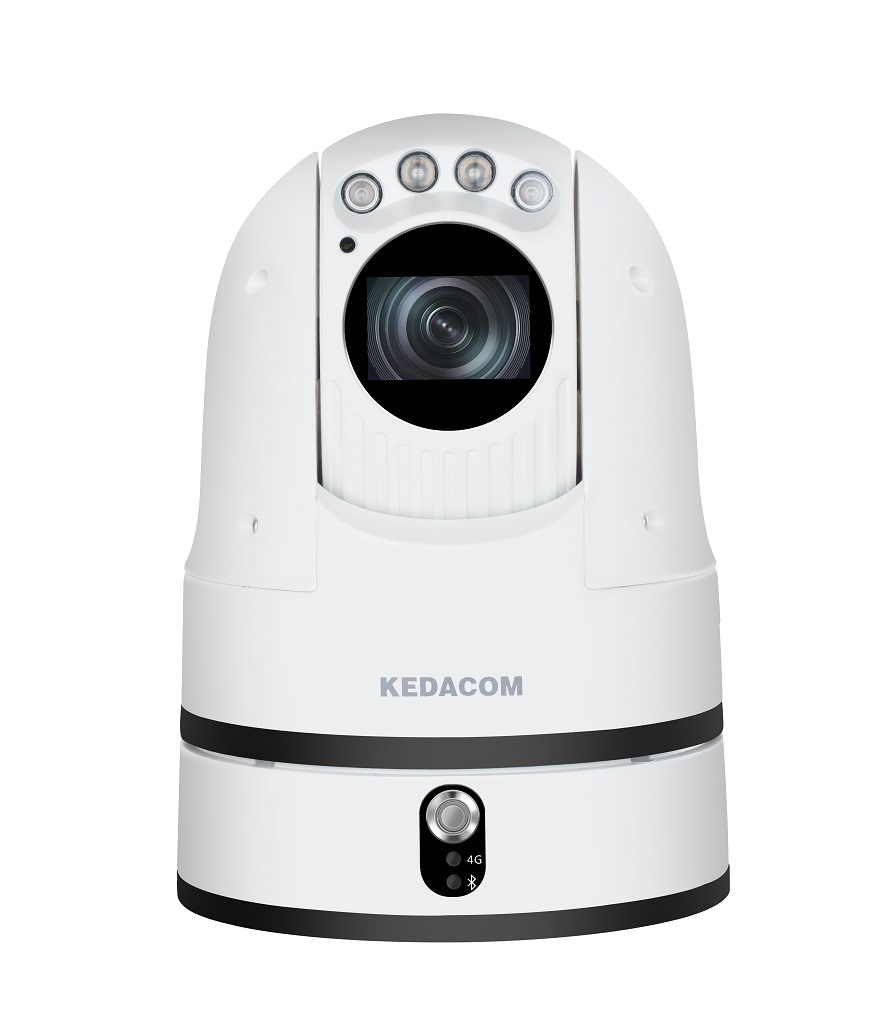

IPC522-F230, 2.0MP 30x Vehicle 3G/4G PTZ Camera
Excellent Image Quality
- 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
- High definition and smooth picture, 1080p@30fps
- H.265 video codec, saves up to 50% bandwidth and storage
- Ultra low illumination, 0.003lux with color picture
- IR automatically adjust
- 3D noise reduction / HLC / BLC
Long Operation Lifespan
- Industrial components, withstands operational temperatures between -40°C ~ 70°C
- IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
- 30x optical zoom
- IR distance up to 80m
Abundant Functions and Features
- Micro SD card optional, supports Automatic Network Replenishment (ANR)
- Built-in super magnet
- 3G / 4G / Wi-Fi / Bluetooth supported
- Up to 10 hours continous working with battery
- Vehicle based PT structure
IPC522-G230-G
Recognitive 2.0MP 30x Vehicle 4G PTZ Camera
Excellent Image Quality
- 2.0 Megapixel 1/2.8’’ Progressive scan CMOS Sensor
- High definition and smooth picture, 1080p@30fps
- H.265 video codec, saves up to 50% bandwidth and storage
- Ultra-low illumination, 0.003lux with color picture
- IR automatically adjusts
- 3D noise reduction / HLC / BLC
Recognitive Functions
- Up to 5 targets simultaneously
- Target capturing and characters recognizing
- Built-in picture comparison algorithm, best picture selection
Long Operation Lifespan
- Industrial components, withstands operational temperatures between -40°C ~ 70°C
- IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
- 30x optical zoom
- IR distance up to 80m
Abundant Functions and Features
- Built-in Micro SD card, supports Automatic Network Replenishment (ANR)
- Built-in super magnet
- 3G / 4G / Wi-Fi / Bluetooth supported
- Up to 8 hours continuous working with battery in 4G
- Vehicle based PT structure
IPC521-H120-N 2.0MP 20x Vehicle PTZ Camera
Excellent Image Quality
- 2.0 Megapixel 1/2.8’’ progressive scan CMOS Sensor
- High definition and smooth picture, 1080p@60fps
- H.265 video codec, saves up to 50% bandwidth and storage
- Ultra-low illumination, 0.003lux with color picture
- IR automatically adjusts
- 120dB Ultra WDR
- 3D noise reduction / HLC / BLC
Long Operation Lifespan
- Industrial components, withstands operational temperatures between
- -40°C ~ +70°C
- IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
- 20x optical zoom
- IR distance up to 200m
- Abundant Functions and Features
- Wiper support
- Vehicle based PT structure
IPC521-H120-N 2.0MP 20x Vehicle PTZ Camera
Excellent Image Quality
- 2.0 Megapixel 1/2.8’’ progressive scan CMOS Sensor
- High definition and smooth picture, 1080p@60fps
- H.265 video codec, saves up to 50% bandwidth and storage
- Ultra-low illumination, 0.003lux with color picture
- IR automatically adjusts
- 120dB Ultra WDR
- 3D noise reduction / HLC / BLC
Long Operation Lifespan
- Industrial components, withstands operational temperatures between
- -40°C ~ +70°C
- IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
- 20x optical zoom
- IR distance up to 200m
- Abundant Functions and Features
- Wiper support
- Vehicle based PT structure
IPC521-F233-N 2.0MP 33x Vehicle PTZ Camera
Excellent Image Quality
- 2.0 Megapixel 1/3’’ progressive scan CMOS Sensor
- High definition and smooth picture, 1080p@30fps
- H.265 video codec, saves up to 50% bandwidth and storage
- Ultra-low illumination, 0.003lux with color picture
- IR automatically adjust
- 120dB Ultra WDR
- 3D noise reduction / HLC / BLC
Long Operation Lifespan
- Industrial components, withstands operational temperatures between -40°C ~ 70°C
- IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
- 33x optical zoom
- IR distance up to 200m
Abundant Functions and Features
- Wiper support
- Vehicle based PT structure
KDM2410M-V21 Vehicle NVR / WiFi, 4G, GPS
Excellent Video Transmission
- KWTP protocol for 3G / 4G transmission, improves the video stream continuity under unstable network conditions
- H.265 video codec, saves up to 50% bandwidth and storage
High Reliability
- Embedded Linux
- Low power consumption
- Aviation plug design for Ethernet, video, audio, control signal and power supply
- Fan-less design with heat dissipation shell
KDM2410M-V21 Vehicle NVR / WiFi, 4G, GPS
Excellent Video Transmission
- KWTP protocol for 3G / 4G transmission, to ensure stable video streaming even when the network connection is unstable
- H.265 video codec, saves up to 50% bandwidth and storage capacity
High Reliability
- Embedded Linux
- Low power consumption
- Tailor-made connect or for Ethernet, video, audio, control signal and power supply –
- Fan-less design with heat dissipation shell
- Shock-proofed design to protect the HDD
Easy to Use
- Built-in ruggedized HDD with up to 4TB
Abundant functions and features
- 8 IP camera channels for KEDACOM or 3rd party cameras (ONVIF integration)
- WiFi, 3G/4G, GPS compliant
- All major wireless networks are supported

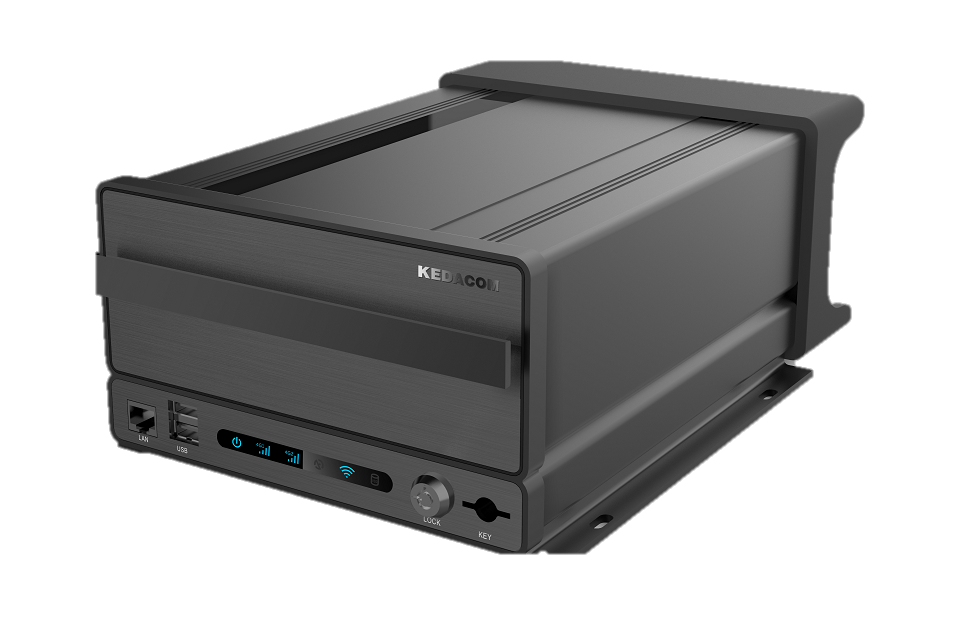

SVR2420 Series
Excellent Video Transmission
- KWTP protocol for 3G / 4G transmission, improves the video stream continuity under unstable network conditions
- H.265 video codec, saves up to 50% bandwidth and storage
High-performance
- 1 x 4K@30fps video decoding capability
- Up to 12 channels and 4K H.265 supported
High reliability
- Embedded Linux
- Low power consumption
- Aviation plug design for Ethernet, video, audio, control signal and power supply
- Fan-less design with heat dissipation shell
- Shock-proof design protects the HDD while vehicle is being driven
Easy to install and Use
- Automatic network organizing
- Built-in DHCP server
- Pluggable HDD drawer, easy to change HDD module
- HDD module supports USB interface, easy to backup record
Abundant functions and features
- Up to 12 IP Camera access
- Built-in Wi-Fi AP module can access Wi-Fi IP camera
- All mobile networks supported
- Supports dual SIM card bundle
- Built-in GPS module

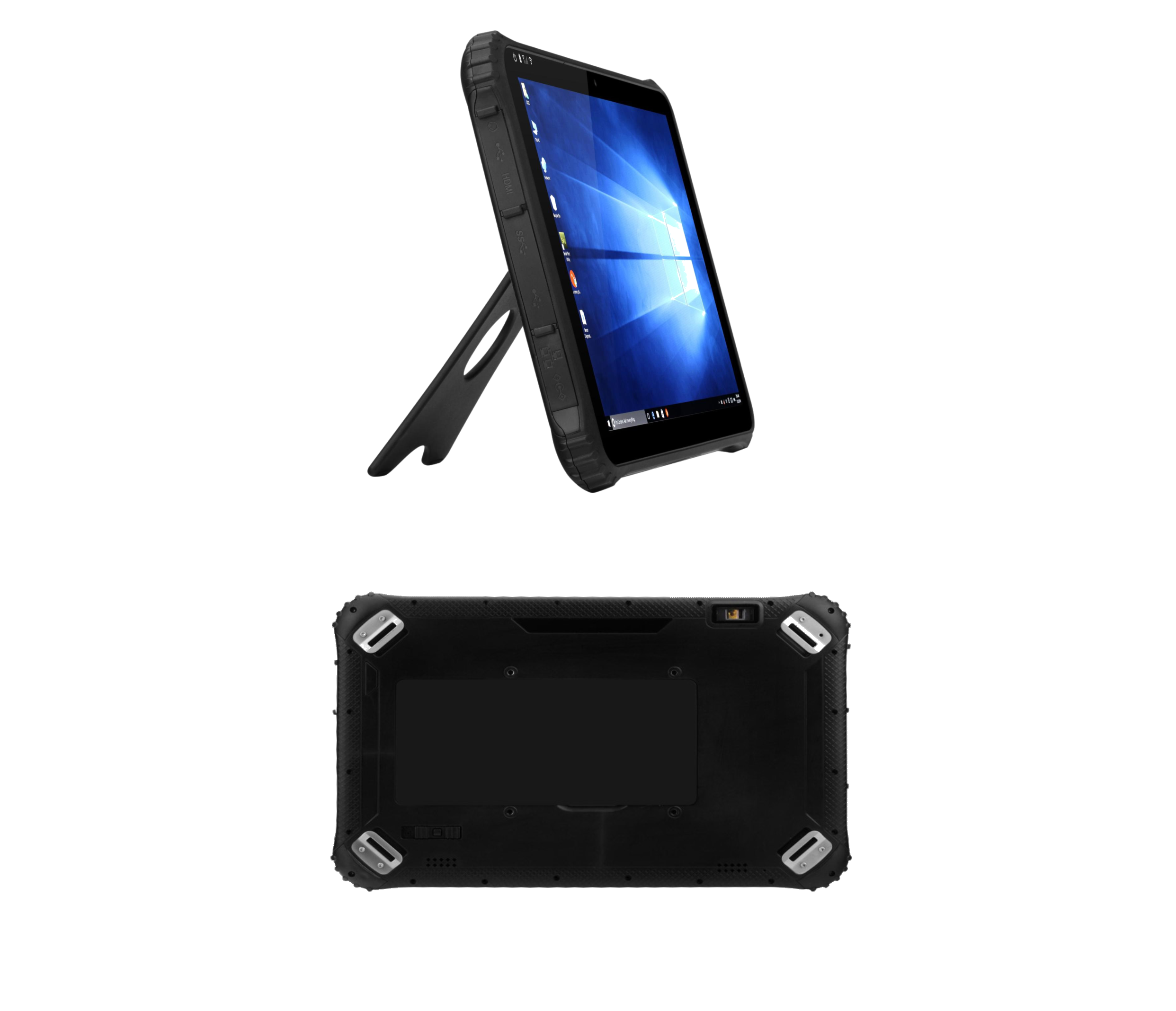

ETE-RT-i22k Ruggedized In-vehicle 12inch Touch Screen Tablet
High Level Protection
- Ruggedized (IP65)
High Performance
- Playback, Snapshot, Setup for KDM2410M-V21 and SVR2420
High Performance
- Windows 10 IOT 64bit Enterprise
- In-Vehicle 12.2inch Touch Screen display
- 4G/3G/WiFi
Abundant Functions and Features
- 2MP Front camera, 5MP Rear camera
- GPS, G-sensor, NFC, 2*USB 2.0, 1* USB 3.0
- 64GB/128GB/256GB/512GB
Portable and Light
- 320 x 216 x 20.4mm, 1500g

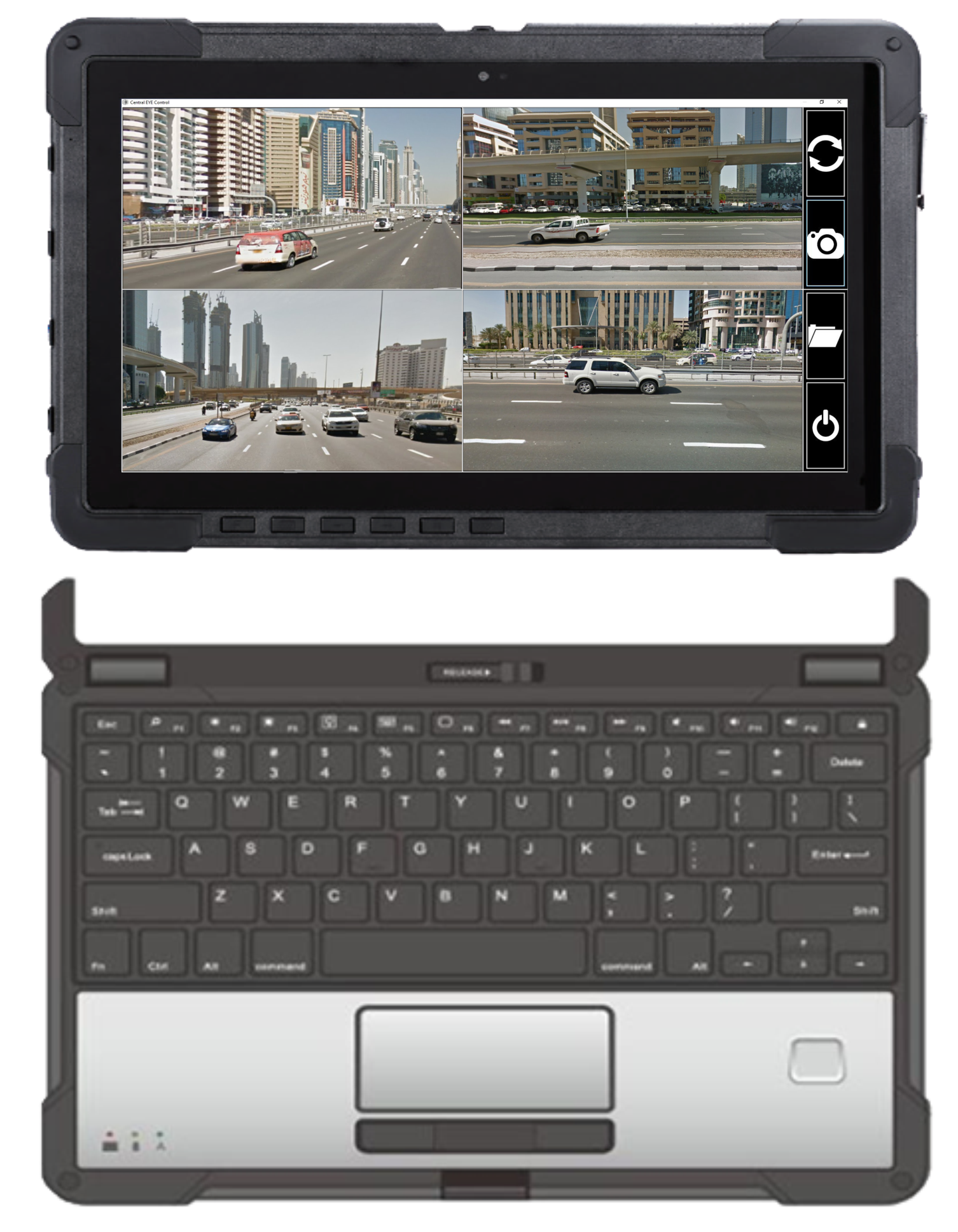

ETE-RT-X11 - Ruggedized In-vehicle 2 in 1 Windows Touch Screen Tablet
High Level Protection
- Ruggedized (IP65)
Various Video functions
- Playback, Snapshot, Setup for KDM2410M-V21 and SVR2420
High Performance
- Windows 10
- In-Vehicle 11.6-inch Touch Screen display
- 4G/3G/Wi-Fi,
Abundant Functions and Features
- 2MP Front camera, 8MP Rear camera
- GPS, USB 2.0 x 1, USB 3.0 x 1
- 128GB/256GB/512GB
Portable and Light
- 305*205*18 mm, 3140g

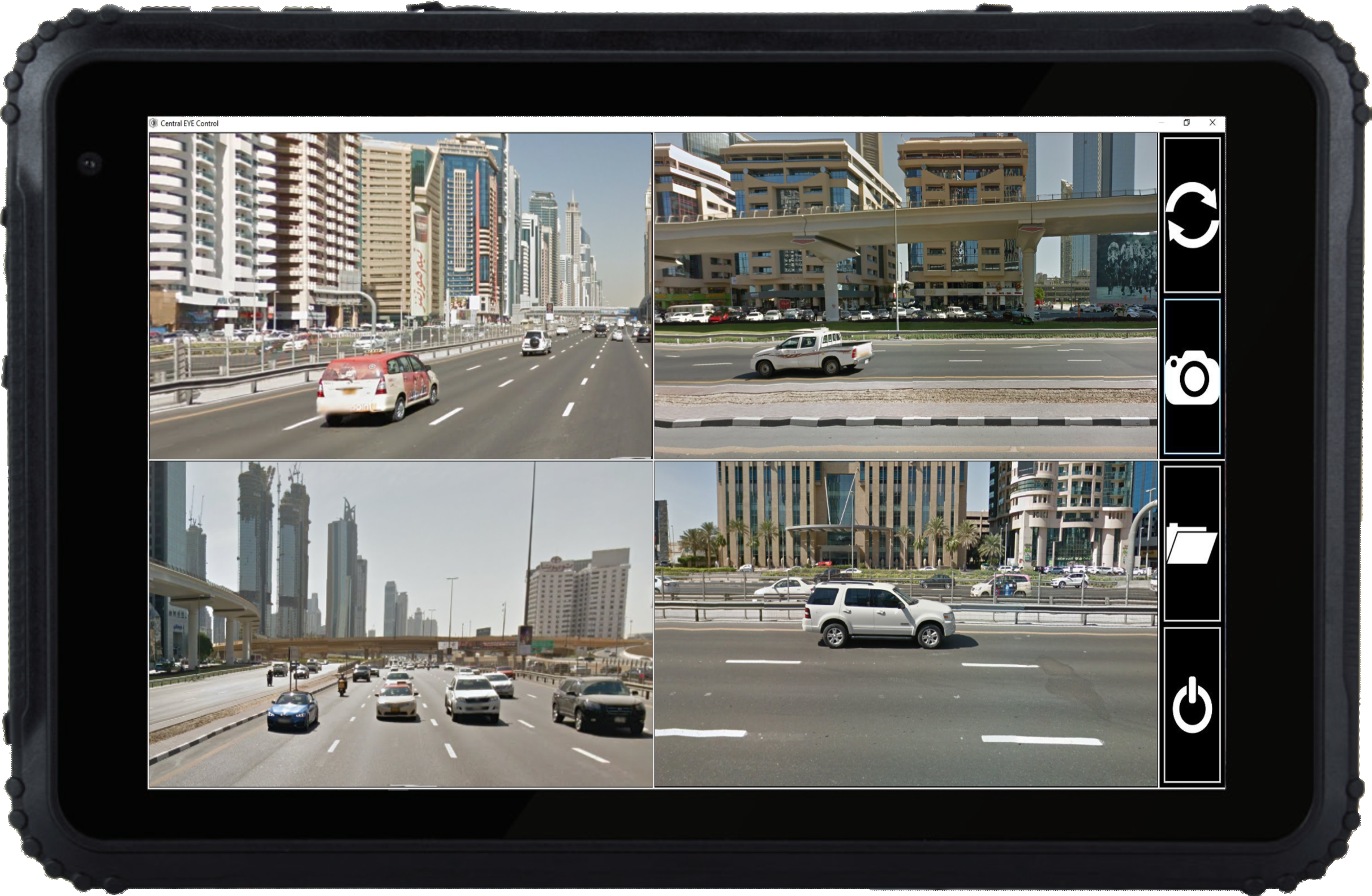

ETE-RT-Q88
Ruggedized In-vehicle Android Touch Screen Tablet
High Level Protection
- Ruggedized (IP67)
Various Video functions
- Playback, Snapshot, Setup for KDM2410M-V21 and SVR2420
High Performance
- Android 9.0
- In-Vehicle 8-inch Touch Screen display
- 3G/4G/LTE, Wi-Fi, GPS, NFC, USB
Abundant Functions and Features
- 2MP Front camera, 8MP Rear camera
- TF card slot (SDHC/SDXC), HDMI input
Portable and Light
- 220 x 143 x 14mm, 647g
